Category: Pleated Filters



[+] Larger

Airflow Custom M8 Pleated Filter

[ Pleated Panel Air Filters ]

AIRFLOW M8 PLEAT

Electrostatically enhanced, MERV 8 pleated filter. The Airflow Products Series M8pleated air filter features 100% “supercharged” synthetic media, consisting of graduated denier fibers, which are hydrophobic in nature and non-supportive of microbial growth. This high performance, electrostatically enhanced media contributes to a higher initial and sustained efficiency, and longer service life.
Available in standard and high capacity versions, the Series M8 achieves a MERV 8, (Minimum Efficiency Reporting Value) rating as per ASHRAE Std.52.2. For use as a pre-filter for high efficient final filters, as a stand alone primary filter, or as a recognized solution to indoor air quality concerns, the Airflow Products Series M8 is the filter of choice by HVAC professionals worldwide.

Features & Benefits
- Efficiency Increased initial particulate efficiency MERV 8 (Minimum Efficiency
- Reporting Value) per ASHRAE 52.2 /Extended dust holding capacity
- Media Electrostatically enhanced, 100% synthetic fibers
- Graduated density / built-in prefilter layer
- Resistance Low initial resistance to air flow/Longer service life/Savings in operating / energy costs
- Moisture Inherent hydrophobic characteristics of synthetic media
- Resistant Non-corrosive materials
- Anti-microbial Synthetic components non-supportive of bacterial / microbial growth



Spec Sheet
Sizes | Buy


[+] Larger

Airflow Custom HC M13 Pleated Filter

[ Pleated Panel Air Filters ]

AIRFLOW M13 PLEAT

Electrostatically enhanced, MERV 13 pleated filter. The Airflow Products Series M13 pleated air filter features 100% “supercharged” synthetic media, consisting of graduated denier fibers, which are hydrophobic in nature and non-supportive of microbial growth. This high performance, electrostatically enhanced media contributes to a higher initial and sustained efficiency, and longer service life.
Available in standard and high capacity versions, the Series M13 achieves a MERV 13, (Minimum Efficiency Reporting Value) rating as per ASHRAE Std. 52.2.
For use as a pre-filter for high efficient final filters, as a stand alone primary filter, or as a recognized solution to indoor air quality concerns, the Airflow Products Series M13 is the filter of choice by HVAC professionals worldwide.

Features & Benefits
- Efficiency Increased initial particulate efficiency MERV 13 (Minimum Efficiency
- Reporting Value) per ASHRAE 52.2 /Extended dust holding capacity
- Media Electrostatically enhanced, 100% synthetic fibers
- Graduated density / built-in prefilter layer
- Resistance Low initial resistance to air flow/Longer service life/Savings in
- operating / energy costs
- Moisture Inherent hydrophobic characteristics of synthetic media
- Resistant Non-corrosive materials
- Anti-microbial Synthetic components non-supportive of bacterial / microbial growth



Spec Sheet
Sizes | Buy


[+] Larger

Airflow M10 Pleated Filter

[ Pleated Panel Air Filters ]

The Airflow Products Series M10 pleated air filter features 100% “supercharged” synthetic media, consisting of graduated denier fibers, which are hydrophobic in nature and non-supportive of microbial growth. This high performance, electrostatically enhanced media contributes to a higher initial and sustained efficiency, and longer service life.

Available in standard and high capacity versions, the Series M10 achieves a MERV 11, (Minimum Efficiency Reporting Value) rating as per ASHRAE Std. 52.2.

For use as a pre-filter for high efficient final filters, as a stand-alone primary filter, or as a recognized solution to indoor air quality concerns, the Airflow Products Series M11 is the filter of choice by HVAC professionals worldwide.



Spec Sheet
Sizes | Buy


[+] Larger

Airflow Carbon Pleated Filter

[ Pleated Panel Air Filters ]

High Capacity Carbon pleated panel filters, odorless. Our extended surface pleated panel filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter. As a standard offering, the Series 2000 and 3000 Filters achieve MERV 8, as ASHRAE STD. 52-2. The 26 point clay coated, kraft-board die cut frame, diagonal and horizontal support members, radial wedge design and expanded metal media support create one of the most rigid filters of its type in the industry. The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive, providing a continuous and positive seal. The standard offering is rated by Underwriters Laboratories as Class II, per UL Standard 900. Available in Economy, Standard and High Capacity versions.



Spec Sheet
Sizes | Buy


[+] Larger

Airflow Custom Carbon Pleated Filter

[ Pleated Panel Air Filters ]

High Capacity Carbon pleated panel filters, odorless. Our extended surface pleated panel filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter. As a standard offering, the Series 2000 and 3000 Filters achieve MERV 8, as ASHRAE STD. 52-2. The 26 point clay coated, kraft-board die cut frame, diagonal and horizontal support members, radial wedge design and expanded metal media support create one of the most rigid filters of its type in the industry. The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive, providing a continuous and positive seal. The standard offering is rated by Underwriters Laboratories as Class II, per UL Standard 900. Available in Economy, Standard and High Capacity versions.



Spec Sheet
Sizes | Buy


[+] Larger

Airflow HC M13 Pleated Filter

[ Pleated Panel Air Filters ]

AFP MERV 13 filters are high efficiency filters typically used in situations requiring very clean air such as hospitals, general operating rooms and clean air-sensitive commercial buildings. MERV 13 can also be used in HVAC systems for your home. They are recommended for systems made more recently, as they can have a very high initial airflow resistance that increases as the filter collects dust and dirt. MERV 13 Air Filters effectively reduce pollen, dust, pet dander, mold spores, dust mites and other allergens from your indoor air; helping to improve allergies and alleviate sinus irritation. This helps reduce watery eyes, itchy throat, coughing, and sneezing, as well as symptoms of asthma. MERV 13 Air Filters also extend the life of your heating and cooling system by making it work more efficiently. Why MERV Matters MERV — Minimum Efficiency Reporting Value — is an industry standard for comparing and rating air filter efficiency. Home air filters commonly have MERV ratings from 1 to 13. A filter with a higher MERV rating will not only capture more particles, but also smaller particles, which translates to cleaner, healthier indoor air. Typical throwaway fiberglass air filters carry a MERV rating ranging from 1 to 4. Our pleated home air replacement filters feature a high MERV 8, MERV 11 or MERV 13 rating.

To determine a MERV, solid particles of varying sizes are introduced into the test system, upstream from the test filter. A laser particle counter alternately samples air upstream and downstream from the test filter. This is done on the clean filter and after five dust feedings. The lowest efficiency for each range is used to determine the Composite Minimum Efficiency and assign a MERV rating.
• MERV 13 rating outperforms MERV 8 or MERV 11 OEM efficiency.
• Each filter lasts up to 90 days under normal circumstances.
• Moisture and bacteria resistant.
• Two-piece enclosure frame for double strength support.
•Electrostatically charged synthetic filter media captures sub-micron airborne allergens.
• Substantially reduced initial resistance to airflow.
• Meet LEED requirements for "Green Building" certification.
• Filters dust, dirt, pollen, odor, pet dander, mold spores, dust mites, microscopic allergens, smoke and bacteria.
• High Capacity minimizes energy costs — maximizes furnace and air conditioning efficiency by reducing dust and dirt buildup in air ducts and coils.



Spec Sheet
Sizes | Buy


[+] Larger

Airflow High Capacity Pleated Filter

[ Pleated Panel Air Filters ]

AFP MERV 13 filters are high efficiency filters typically used in situations requiring very clean air such as hospitals, general operating rooms and clean air-sensitive commercial buildings. MERV 13 can also be used in HVAC systems for your home. They are recommended for systems made more recently, as they can have a very high initial airflow resistance that increases as the filter collects dust and dirt. MERV 13 Air Filters effectively reduce pollen, dust, pet dander, mold spores, dust mites and other allergens from your indoor air; helping to improve allergies and alleviate sinus irritation. This helps reduce watery eyes, itchy throat, coughing, and sneezing, as well as symptoms of asthma. MERV 13 Air Filters also extend the life of your heating and cooling system by making it work more efficiently. Why MERV Matters MERV — Minimum Efficiency Reporting Value — is an industry standard for comparing and rating air filter efficiency. Home air filters commonly have MERV ratings from 1 to 13. A filter with a higher MERV rating will not only capture more particles, but also smaller particles, which translates to cleaner, healthier indoor air. Typical throwaway fiberglass air filters carry a MERV rating ranging from 1 to 4. Our pleated home air replacement filters feature a high MERV 8, MERV 11 or MERV 13 rating.

To determine a MERV, solid particles of varying sizes are introduced into the test system, upstream from the test filter. A laser particle counter alternately samples air upstream and downstream from the test filter. This is done on the clean filter and after five dust feedings. The lowest efficiency for each range is used to determine the Composite Minimum Efficiency and assign a MERV rating.
• MERV 13 rating outperforms MERV 8 or MERV 11 OEM efficiency.
• Each filter lasts up to 90 days under normal circumstances.
• Moisture and bacteria resistant.
• Two-piece enclosure frame for double strength support.
•Electrostatically charged synthetic filter media captures sub-micron airborne allergens.
• Substantially reduced initial resistance to airflow.
• Meet LEED requirements for "Green Building" certification.
• Filters dust, dirt, pollen, odor, pet dander, mold spores, dust mites, microscopic allergens, smoke and bacteria.
• High Capacity minimizes energy costs — maximizes furnace and air conditioning efficiency by reducing dust and dirt buildup in air ducts and coils.



Spec Sheet
Sizes | Buy


[+] Larger

Airflow Custom High Capacity Pleat Filter

[ Pleated Panel Air Filters ]

High Capacity medium efficiency pleated panel filters Our extended surface pleated panel filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter. As a standard offering, the Series 2000 and 3000 Filters achieve MERV 8, as ASHRAE STD. 52-2. The 26 point clay coated, kraft-board die cut frame, diagonal and horizontal support members, radial wedge design and expanded metal media support create one of the most rigid filters of its type in the industry. The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive, providing a continuous and positive seal. The standard offering is rated by Underwriters Laboratories as Class II, per UL Standard 900. Available in Economy, Standard and High Capacity versions.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil 30/30 Pleated Filter

[ Pleated Panel Air Filters ]

Guaranteed to last longer. True MERV 8 maintained efficiency. Meets all published hospital filter efficiency guidelines

Description: High capacity pleated panel filter available in 1", 2" or 4" depths.
Typical applications: Prefilters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.
Media: Proprietary blend of meia fibers in a uniform lofted blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: ECI value of five stars, listed as UL 900.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil 30/30 Dual 9 Pleated Filter

[ Pleated Panel Air Filters ]

Unique dual layer media in the strongest moisture resistant beverage board enclosing frame. True MERV 9 maintained efficiency throughout the life of the filter. Radial pleats, welded wire grid backing. Guaranteed to last 12 months in commercial duty applications and 9 months in industrial level applications.

Description: High capacity pleated panel filter available in 2" or 4" depths.
Typical applications: Prefilters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: Value of 9 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2. ePM10 of 60%.
Media: Proprietary blend of synthetic fibers in a uniform dual layer lofted media blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: ECI value of five stars, listed as UL 900.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil Aeropleat III Pleated Filter

[ Pleated Panel Air Filters ]

Low maintained pressure drop for longer filter life. High wet-strength beverage board frame creates a rigid and durable enclosure. Welded wire media backing to maintain radial pleat configuration. Available in 1", 2" and 4" depths. Excellent choice for those who change filters based upon time or PM program.

Description: Medium capacity pleated panel filter.
Typical applications: Prefilters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: MERV 8 and MERV-A 8 sustained efficiency when evaluated under ASHRAE Testing Standard 52.2.
Media: Proprietary blend of meia fibers in a uniform lofted blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: ECI value of three stars, UL 900.



Spec Sheet
Sizes | Buy


[+] Larger

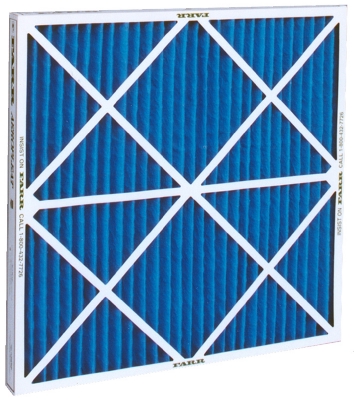

Camfil Aeropleat IV Pleated Filter

[ Pleated Panel Air Filters ]

Low maintained resistance to airflow for longer filter life. High wet-strength beverage board frame creates a rigid and durable enclosure. Welded wire media backing to maintain radial pleat configuration. High capacity for longer life than standard pleated filters. Available in 1", 2" and 4" depths.
Description: High capacity pleated panel filter.
Typical applications: Prefilters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: MERV 8 and MERV-A 8 sustained efficiency when evaluated under ASHRAE Testing Standard 52.2.
Media: Proprietary blend of meia fibers in a uniform lofted blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: ECI value of four stars, UL 900.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil AP-Eleven

[ High Efficiency Pleated Panel Filters ]

Lowest cost of ownership for a MERV 11 filter in a pleated filter design. Radial pleats with welded wire backing for higher dust holding capacity and longer life. Biodegradable Kraft board frame creates a rigid and durable enclosure, manufactured under Sustainable Forestry Initiative (SFI). Available in 1", 2" and 4" depths.

Description: High efficiency synthetic pleated media, welded wire media support and Kraft board enclosing frame manufactured under the Sustainable Forestry Initiative.
Typical applications: Stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: MERV 11 per ASHRAE Standard 52.2.
Media: Synthetic fibers in a uniform lofted media blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: UL Class 2.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil AP-Thirteen

[ High Efficiency Pleated Panel Filters ]

MERV 13 performance in a 2" or 4" depth to meet LEED requirements. Radial pleats with welded wire backing for higher dust holding capacity and longer life. High wet-strength beverage board frame.

Description: High efficiency synthetic pleated media, welded wire media support and Kraft board enclosing frame manufactured under the Sustainable Forestry Initiative.
Typical applications: Stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: MERV 13 per ASHRAE Standard 52.2, meeting current requirements for LEED.
Media: Synthetic fibers in a uniform lofted media blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 150º F (66° C).
Ratings: UL Class 900.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil Custom 30/30 Pleated Filter

[ Pleated Panel Air Filters ]

Guaranteed to last longer. True MERV 8 maintained efficiency. Meets all published hospital filter efficiency guidelines

Description: High capacity pleated panel filter available in 1", 2" or 4" depths.
Typical applications: Prefilters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers.
Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.
Media: Proprietary blend of meia fibers in a uniform lofted blanket.
Recommended final pressure drop: 1.0" w.g. when operated at 500 fpm. System design may dictate alternative changeout point.
Temperature: Maximum continuous operating temperature of 200º F (93° C).
Ratings: ECI value of five stars, listed as UL 900.



Spec Sheet
Sizes | Buy


[+] Larger

Camfil Carbon City Pleat

[ Pleated Panel Air Filters ]

CITYPLEAT

CityPleat panel filters are light duty solutions to suit a wide range of air handling units and housings. They are made from "combination" media and provide removal of both particulate matter (PM) and molecular contamination.

CityPleat filters are constructed from pleated embedded or combination media that provides control of both particles and molecular contaminants. CityPleat panels provide moderate performance and are intended for low impact IAQ and Comfort applications. Filters are available in a range of standard sizes and thicknesses to suit filter tracks or frames in housings. The panels utilise a broad spectrum carbon to provide efficiency against a very wide range of airborne chemicals. The filters operate with a Rapid Adsorption Dynamics (RAD) mechanism that ensures maximum performance against the multiple chemicals that are typically present in city-centre buildings. Typical particle removal efficiency classifications are Coarse 65% according to ISO16890 and MERV 7 according to ASHRAE 52.2. Actual achieved performance will depend on the filter configuration and airflow. CityPleat filters are disposable. Subject to pressure loss compatibility, CityPleat filters can replace conventional pre-filter panels to provide enhanced IAQ using a single filter. CityPleat filters are also commonly used as temporary solutions, for example during short or medium term construction projects.



Spec Sheet
Sizes | Buy


[+] Larger

Fiberbond Kleen Pleat

[ Pleated Panel Air Filters ]

Kleen Pleat Gold The Only pleat media with Dustlok adhesive, Spor-Ax antimicrobial and rigid enough that a support wire backing is not required. Spor-Ax effectively controls growth of mold, mildew, algae and fungi on the filter. Fiberbond filters with Spor-Ax do not support microbial growth. Independent laboratory test results on a 24” x 24” x 2” – 8 pleats per foot: ASHRAE 52.1 Average Efficiency 39.1% ASHRAE 52.2 MERV 7 Media Thickness At Twice the thickness of typical poly/cotton media the Kleen Pleat Gold with Dustlok adhesive locks in trapped dirt. No sifting of dust. No voids or open areas as with lighter weight media. Media Strength A unique blend of synthetic fibers bonded with a flame retardant binder forms a high strength media. At over 6 ounces per square yard Kleen Pleat Gold media weighs 2 to 3 times that of typical pleat media. No Support Wire Backing This combination of fibers, binder, weight and thickness provides a media that does not require the need for a wire support backing. Wire backing has no filtration ability. Its only function is to support a lightweight flimsy media. Kleen Pleat Gold can be incinerated. A Size to Meet Your Needs Kleen Pleat Gold is available in a full range of standard and custom sizes. One Inch Series – 12 pleats per foot. Two Inch Series – 8 pleats per foot and 12 per foot high capacity. Four Inch Series – 8 pleats per foot and 11 per foot high capacity.



Spec Sheet
Sizes | Buy


[+] Larger

Fiberbond Kleen Pleat

[ Pleated Panel Air Filters ]

Kleen Pleat Gold The Only pleat media with Dustlok adhesive, Spor-Ax antimicrobial and rigid enough that a support wire backing is not required. Spor-Ax effectively controls growth of mold, mildew, algae and fungi on the filter. Fiberbond filters with Spor-Ax do not support microbial growth. Independent laboratory test results on a 24” x 24” x 2” – 8 pleats per foot: ASHRAE 52.1 Average Efficiency 39.1% ASHRAE 52.2 MERV 7 Media Thickness At Twice the thickness of typical poly/cotton media the Kleen Pleat Gold with Dustlok adhesive locks in trapped dirt. No sifting of dust. No voids or open areas as with lighter weight media. Media Strength A unique blend of synthetic fibers bonded with a flame retardant binder forms a high strength media. At over 6 ounces per square yard Kleen Pleat Gold media weighs 2 to 3 times that of typical pleat media. No Support Wire Backing This combination of fibers, binder, weight and thickness provides a media that does not require the need for a wire support backing. Wire backing has no filtration ability. Its only function is to support a lightweight flimsy media. Kleen Pleat Gold can be incinerated. A Size to Meet Your Needs Kleen Pleat Gold is available in a full range of standard and custom sizes. One Inch Series – 12 pleats per foot. Two Inch Series – 8 pleats per foot and 12 per foot high capacity. Four Inch Series – 8 pleats per foot and 11 per foot high capacity.



Spec Sheet
Sizes | Buy


[+] Larger

1/2 Special Size Pleat Filter

[ ]

PLEATED TA

1/2" Special size Pleated filter in various widths and lengths



Spec Sheet
Sizes | Buy


[+] Larger

20X25X6 SPACE GUARD 201 MERV11

[ ]

Filtration Group Air Bear Replacement filters ~ for brand name high efficiency media air cleaners used in forced air HVAC systems. Filter performance meets or exceeds the specifications established by the original manufacturer. Residential replacement products include universal replacements for many leading brands, such as: ~ Honeywell, Spaceguard, General, Trion Air Bear Filters are designed to match the original manufacturers dimensions and therefore no cumbersome retrofit steps needed to install. The Air Cleaner Cabinet is designed for residential and light commercial forced-air heating and/or cooling systems. Units handle most central forced air furnace installations. Media filter is wet layered micro fiberglass paper. ~ Universal replacements for leading brands ~ Quality construction and efficient media. No retrofit needed to install ~ Simple upgrade for home filtration systems ~ Cabinet easily adapts to most furnaces FILTRATION GROUP High efficiency filtration removes up to 98% of the dust, dirt, smoke, pollen, bacteria, and other contaminants. Removes up to 80% of particles in the air down to 1.0 microns in size, large dust holding capacity has 100 square feet of filter media. This filtering system’s low pressure drop makes it ideal even for heat pump applications. Filtration Group’s air cleaner cabinet is easy to install because of built in flanges into furnaces. For duct size 20 x 22 1/2. ~ No electrical connections necessary ~ No electricity consumed ~ Does not produce ozone ~ Quick, easy, clean maintenance. Slide out dirty cartridge and replace with new one.



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Aerostar Green Pleated Filter

[ Pleated Panel Air Filters ]

MERV 13 Aerostar® Green Pleat High Capacity Pleated Air Filter The Aerostar® Green Pleat pleated air filter is a perfect fit to achieve points toward LEED certification in commercial, light commercial and industrial buildings alike thanks to the MERV 13 rating. Ideal applications include office and retail, industrial filtration, single and multi-family housing, government and education facilities, and healthcare applications from doctor offices and assisted living facilities to Hospitals. The Green Pleat offers - 100% synthetic media for high efficiency with low air flow resistance

- Low pressure drop minimizes energy costs
- Eliminates need to retrofit to achieve high MERV efficiency
- Moisture resistant paperboard frame maintains strength while wet, will not promote microbial growth
- Achieves MERV 13 to contribute toward LEED certification



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Nova Pleat Filter

[ Pleated Panel Air Filters ]

The Aerostar® NOVApleat is a fully automated construction process ensuring consistent quality and uniform appearance and performance. The self-supported 100% synthetic material is twice the weight of conventional pleated filters resulting in a durable filter able to withstand rough handling conditions. The precision machine fabrication gives the filter consistent quality and the square pleat tip provides added rigidity and improved air flow characteristics. Available in standard and high capacity in a nominal 1″ or 2″ depth. - Achieves MERV 8 - Virtually eliminates shipping damage - No RoHS risk (heavy metals) - Reduces landfill waste – Fully incinerable - May be used for LEED certification point



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Aerostar 400 Standard Pleated Filter

[ Pleated Panel Air Filters ]

The Aerostar® Series 400 pleated air filter is a perfect fit to remove airborne irritants in the HVAC units in commercial, light commercial and industrial buildings alike. Ideal applications include office and retail, industrial filtration, single and multi-family housing, government and education facilities, and healthcare applications from doctor offices and assisted living facilities to Hospitals. The Series 400 offers:

• Initial efficiency greater than 74% on 1-3 micron particles • Low pressure drop minimizes energy costs
• Laminated expanded metal grid provides exceptional strength throughout filter life
• Grid prevents fluttering of media while maintaining pleat uniformity
• Moisture resistant die-cut frame retains strength while wet, will not promote microbial growth
• MERV 8 for Standard Capacity and MERV 10 for High Capacity ratings



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group GeoPleat Pleated Filter

[ Pleated Panel Air Filters ]

Filtration Group GeoPleat ~ The new GeoPleat filter has been developed to provide a high level of filtration in a wide variety of applications. The GeoPleat filter utilizes a thermal embossing pleating and glue bead media separation techniques, which created a three-dimensional pleat in the media. This patented method of pleating and spacing allows the air stream to gently transition into the media, distributing the air evenly throughout the depth of the media. ~ The media pack of the GeoPleat filter is adhesively bonded on all four sides of the filter frame, eliminating the possibility of air bypass around the filter media. ~ Advanced pleat geometry for even dust loading and maximum service life ~ Patented filter technology ~ Very low resistance to air-flow results in lower energy costs ~ UL Class 2 ~ Robust filter media resists tearing or damage ~ Compact design saves shipping and storage space ~ Lightweight—easily disposed



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Aerostar400 HC Pleated Filter

[ Pleated Panel Air Filters ]

Filtration Group Aerostar 400 High Capacity Pleated Air Filters ~ incorporates a 100% synthetic media with an ASHRAE 52.1 average atmospheric efficiency of 25% to 30% and an average arrestance exceeding 90% by weight. The 1” and 2” filters handle velocities up to 500 fpm – the 4” filters up to 625 fpm.

• The media is bonded to a metal grid on the air-exiting side, preventing fluttering, and maintaining uniformity of the pleats.
• The filter pack is enclosed in a heavy-duty, moisture resistant, die-cut frame that will not warp, crack or distort under normal operating conditions.
• Front and back media retainers are an integral part of the filter frame.
• The medial pack is bonded to every part of the frame, preventing any possibility of air by-pass.
• Integral pleat separators on the 4” filters provide additional pleat stabilization for the most demanding application



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Custom Aerostar 400 HC Pleated Filter

[ Pleated Panel Air Filters ]

Filtration Group Aerostar 400 High Capacity Pleated Air Filters ~ incorporates a 100% synthetic media with an ASHRAE 52.1 average atmospheric efficiency of 25% to 30% and an average arrestance exceeding 90% by weight. The 1” and 2” filters handle velocities up to 500 fpm – the 4” filters up to 625 fpm.

• The media is bonded to a metal grid on the air-exiting side, preventing fluttering, and maintaining uniformity of the pleats.
• The filter pack is enclosed in a heavy-duty, moisture resistant, die-cut frame that will not warp, crack or distort under normal operating conditions.
• Front and back media retainers are an integral part of the filter frame.
• The medial pack is bonded to every part of the frame, preventing any possibility of air by-pass.
• Integral pleat separators on the 4” filters provide additional pleat stabilization for the most demanding application



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Aerostar Series 1100 Pleated Filter

[ Pleated Panel Air Filters ]

The Aerostar Series 1100 pleated air filter utilizes 100% synthetic media achieving a MERV 11 value. Pleated filters accumulate heavier, more restrictive particles at the bottom or tips of the pleats, leaving the sides open longer for effective filtration.

The low resistance improves air flow and can greatly reduce energy costs. This filter can be a valuable tool in achieving points for USGBC-LEED certification projects.

Available in nominal depths of 1″, 2″ and 4″

• Achieves MERV 11 (per ASHRAE 52.2-2012)
• Low initial pressure drop
• Initial efficiency is over 2 times greater than traditional cotton poly
• Moisture resistant 100% synthetic media
• Initial efficiency greater than 74% on 1-3 micron particles



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Custom Aerostar Series 1100 Pleated Filter

[ Pleated Panel Air Filters ]

The Aerostar Series 1100 pleated air filter utilizes 100% synthetic media achieving a MERV 11 value. Pleated filters accumulate heavier, more restrictive particles at the bottom or tips of the pleats, leaving the sides open longer for effective filtration.

The low resistance improves air flow and can greatly reduce energy costs. This filter can be a valuable tool in achieving points for USGBC-LEED certification projects.

Available in nominal depths of 1″, 2″ and 4″

• Achieves MERV 11 (per ASHRAE 52.2-2012)
• Low initial pressure drop
• Initial efficiency is over 2 times greater than traditional cotton poly
• Moisture resistant 100% synthetic media
• Initial efficiency greater than 74% on 1-3 micron particles



Spec Sheet
Sizes | Buy


[+] Larger

Filtration Group Custom Aerostar 400 Standard Pleated Filter

[ Pleated Panel Air Filters ]

The Aerostar® Series 400 pleated air filter is a perfect fit to remove airborne irritants in the HVAC units in commercial, light commercial and industrial buildings alike. Ideal applications include office and retail, industrial filtration, single and multi-family housing, government and education facilities, and healthcare applications from doctor offices and assisted living facilities to Hospitals. The Series 400 offers:

• Initial efficiency greater than 74% on 1-3 micron particles • Low pressure drop minimizes energy costs
• Laminated expanded metal grid provides exceptional strength throughout filter life
• Grid prevents fluttering of media while maintaining pleat uniformity
• Moisture resistant die-cut frame retains strength while wet, will not promote microbial growth
• MERV 8 for Standard Capacity and MERV 10 for High Capacity ratings



Spec Sheet
Sizes | Buy


[+] Larger

Air Bear Replacement MV11

[ ]

Filtration Group Air Bear Replacement filters ~ for brand name high efficiency media air cleaners used in forced air HVAC systems. Filter performance meets or exceeds the specifications established by the original manufacturer. Residential replacement products include universal replacements for many leading brands, such as: ~ Honeywell, Spaceguard, General, Trion Air Bear Filters are designed to match the original manufacturers dimensions and therefore no cumbersome retrofit steps needed to install. The Air Cleaner Cabinet is designed for residential and light commercial forced-air heating and/or cooling systems. Units handle most central forced air furnace installations. Media filter is wet layered micro fiberglass paper. ~ Universal replacements for leading brands ~ Quality construction and efficient media. No retrofit needed to install ~ Simple upgrade for home filtration systems ~ Cabinet easily adapts to most furnaces FILTRATION GROUP High efficiency filtration removes up to 98% of the dust, dirt, smoke, pollen, bacteria, and other contaminants. Removes up to 80% of particles in the air down to 1.0 microns in size, large dust holding capacity has 100 square feet of filter media. This filtering system’s low pressure drop makes it ideal even for heat pump applications. Filtration Group’s air cleaner cabinet is easy to install because of built in flanges into furnaces. For duct size 20 x 22 1/2. ~ No electrical connections necessary ~ No electricity consumed ~ Does not produce ozone ~ Quick, easy, clean maintenance. Slide out dirty cartridge and replace with new one.



Spec Sheet
Sizes | Buy


[+] Larger

Nova High Capacity Pleat

[ Pleated Panel Air Filters ]

The Aerostar® NOVApleat is a fully automated construction process ensuring consistent quality and uniform appearance and performance. The self-supported 100% synthetic material is twice the weight of conventional pleated filters resulting in a durable filter able to withstand rough handling conditions. The precision machine fabrication gives the filter consistent quality and the square pleat tip provides added rigidity and improved air flow characteristics. Available in standard and high capacity in a nominal 1″ or 2″ depth. - Achieves MERV 8 - Virtually eliminates shipping damage - No RoHS risk (heavy metals) - Reduces landfill waste – Fully incinerable - May be used for LEED certification point



Spec Sheet
Sizes | Buy
