Category: Hepa Filters

Camfil XH Absolute Filter

[ Absolute Filters ]

CAMFIL XH ABSOLUTE

• Individually tested high capacity HEPA/ULPA filter in an enclosure assembled without penetrating fasteners
• Unique seamless poured-in-place gasket ensures leak free performance when installed into housings or built-up filter banks

Description: High capacity HEPA/ULPA grade filter in an all metal 16-gauge enclosing frame.
Typical applications: Built-up filter banks, rooftops, and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 99.97% at 0.3µ to 99.9995% at 0.3µ.
Media: Microfine glass media formed into pleats separated by a corrugated aluminum separator.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 175º F (80° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filter. UL 900.

Spec Sheet

Sizes

Buy

Camfil F Absolute

[ Absolute Filters ]

• High temperature Absolute for Class 100 oven validation to 750° F ( 398° C)
• Available in efficiencies of 95% or 99.97% at 0.3µ

  Description: High temperature HEPA grade filter with corrugated aluminum separators, ceramic sealant stainless steel enclosing frame and foil-wrapped fiberglass and/or ceramic gasket.
  Typical applications: High temperature ovens in pharmaceuticals and clean process manufacturing.
  Efficiency: 95% or 99.97% at 0.3µ.
  Media: Microfine glass media formed into pleats separated by corrugated aluminum separators with hemmed edges.
  Recommended final pressure drop: Recommended final pressure drop is 2.0" w.g., or consult factory.
  Temperature: Maximum continuous operating temperature of 750º F (400° C).
  Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters. UL 900.

Spec Sheet

Sizes

Buy

Camfil Termikfil 2000

[ Absolute Filters ]

• Saves labor and manufacturing downtime with its shorter temperature rise cycle.
• The only HEPA filter that can comply with the most stringent FDA GMP requirements.
• High temperature (650°) HEPA filter with unique floating component design.

Description: High temperature HEPA grade filter with filament thread media separators, ceramic sealant, and ceramic holding frame and glass-braid or rolled glass fiber sealing gasket.
Typical applications: High temperature ovens in pharmaceuticals and clean process manufacturing.
Efficiency: 99.99% at 0.3 micron.
Media: Microfine glass media separated by glass filament media separators.
Recommended final pressure drop: Consult factory. Recommended final pressure drop is 2.0" w.g.
Temperature: Maximum continuous operating temperature of 662º F (350° C).
Ratings: Tested in accordance with EN1822.

Spec Sheet

Sizes

Buy

Camfil Ultra-Pac Filter

[ Absolute Filters ]

• Ideal for use in existing systems that require increased airflow
• Close-pleat technology increases filter media area providing a lower resistance to airflow resulting in energy savings.

Description: MERV 16 or HEPA grade filter in a 16-gauge galvannealed steel enclosing frame.
Typical applications: Built-up filter banks, rooftops, and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: MERV 16 or 99.99% at 0.3µ.
Media: 7-inch deep mini-pleated microfine glass media pack in a nominal 12" deep enclosure, sealed with fire-retardent polyurethane sealant.
Recommended final pressure drop: Rule of thumb: change filter when the initial pressure drop doubles, or consult factory.
Temperature: Maximum continuous operating temperature of 160º F (70° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filter.

Spec Sheet

Sizes

Buy

Camfil Filtra 2000 HEPA Filter

[ Absolute Filters ]

• High filter surface area offers low pressure drop for energy savings and longer life
• Airflow capabilities up to 2400 cfm with low initial pressure drop

Description: High capacity HEPA/ULPA grade filter in an anodized aluminum enclosing frame with seamless poured-in-place sealing gasket
Typical applications: Built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 95% to 99.999% at 0.3µ to
Media: Microfine glass media formed into individual mini-pleat media packs and assembled into a V-bank filter configuration.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 175º F (79° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters. UL 900.

Spec Sheet

Sizes

Buy

Camfil Micretain

[ Absolute Filters ]

• Removes 99% of all known airborne bacteria.
• Same construction and structural integrity as our X-series HEPA filters.

Description: 95% DOP (99% ASHRAE) filter in an all metal 16-gauge enclosing frame.
Typical applications: Built-up filter banks, rooftops, and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 95% at 0.3µ.
Media: Microfine glass media formed into pleats separated by corrugated aluminum separators.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum operating temperature of 175º F (80° C).
Ratings: UL 900.

Spec Sheet

Sizes

Buy

Camfi Filtra 2000 GEL Absolute

[ Absolute Filters ]

• High filter surface area offers low pressure drop for energy savings and longer life
• Airflow capabilities up to 2300 cfm with a low initial pressure drop
• Gel seal to ensure leak free performance when mounted to knife-edge mounting system

Description: High capacity HEPA/ULPA grade filter in an anodized aluminum enclosing frame with gel seal track with elastic gel sealant. Versions available for standard industry mounting systems or specific to Camfil containment housings.
Typical applications: Built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 95% to 99.999% at 0.3µ.
Media: Microfine glass media formed into individual mini-pleat media packs and assembled into a V-bank filter configuration.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 155º F (68° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters. UL 900.

Spec Sheet

Sizes

Buy

Camfil PS Absolute

[ Absolute Filters ]

• Individually tested standard capacity HEPA filter in an all-wood enclosing frame.
• Unique seamless poured-in-place gasket ensures leak free performance when installed into housings or built-up filter banks.

Description: HEPA grade filter in all-wood enclosing frame.
Typical applications: Built-up filter banks, rooftops, and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 99.97% at 0.3µ to 99.99% at 0.3µ.
Media: Microfine glass media formed into pleats separated by corrugated aluminum separators.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 175º F (80° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters.

Spec Sheet

Sizes

Buy

Camfil PH Absolute

[ Absolute Filters ]

• Individually tested high capacity HEPA filter in an all-wood enclosing frame.
• Unique seamless poured-in-place gasket ensures leak free performance when installed into housings or built-up filter banks.

Description: High capacity HEPA grade filter in all-wood enclosing frame.
Typical applications: Built-up filter banks, rooftops, and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: 99.97% at 0.3µ to 99.99% at 0.3µ.
Media: Microfine glass media formed into pleats separated by tapered corrugated aluminum separators.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 175º F (80° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters.

Spec Sheet

Sizes

Buy

Camfil XS Absolute Filter

[ Absolute Filters ]

CAMFIL XS ABSOLUTE Camfil standard-capacity absolute filters are manufactured from the highest quality components, under demanding quality control conditions, and they are certified to ensure performance in the most critical of applications. The XS is available in efficiencies from 99.97% to 99.999% on 0.3 micron particles. Typical applications include medical facilities, pharmaceutical manufacturing, electronic component manufacturing, food and dairy processing facilities and many other locations where ultra-clean air is a requirement. Every XSabsolute includes:

• A galvannealed 16-gauge steel frame that creates a durable, dimensionally-stable corrosionresistant enclosure.
• An X-body frame is assembled without the use of penetrating fasteners to ensure leak-free performance throughout the life of the filter.
• Safe-edge corrugated aluminum separators to ensure uniform airflow throughout the media pack and maintain pack stability. The edges of the separators are hemmed for added strength and to protect the media from damage during manufacture, shipping and installation.
• Micro glass fiber media to provide efficiency to specified performance values. The media is highly resistant to moisture in high humidity environments.
• A one-piece seamless urethane gasket to ensure a leak-free filter-to-holding mechanism seal. (A neoprene dove-tailed juncture gasketis also available).

Spec Sheet

Sizes

Buy

Camfil K Absolute

[ Absolute Filters ]

• High temperature Absolute for Class 100 oven validation to 500° F ( 260° C)
• Available in efficiencies of 95%, 99.97% or 99.99% at 0.3µ

Description: High temperature HEPA grade filter with corrugated aluminum separators, silicone sealant, and stainless steel enclosing frame.
Typical applications: High temperature ovens in pharmaceuticals and clean process manufacturing.
Efficiency: 95%, 99.97% and 99.99% at 0.3µ.
Media: Microfine glass media formed into full pleats separated by corrugated aluminum separators.
Recommended final pressure drop: Recommended final pressure drop is 2.0" w.g. Consult factory for more information.
Temperature: Maximum continuous operating temperature of 500º F (260° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters. UL 900.

Spec Sheet

Sizes

Buy

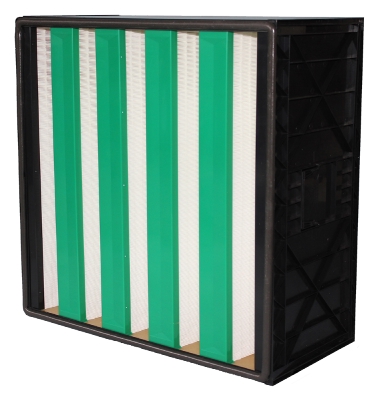

Camfil Absolute VG

[ Absolute Filters ]

• Lightweight plastic frame. no metal parts, easily disposal with a crushable and/or incinerable frame.
• High filter media surface area offers low pressure drop for energy savings and longer life.
• Airflow capabilities up to 2400 cfm.

Description: High capacity HEPA/ULPA grade filter in an all-plastic enclosing frame with poured-in-place sealing gasket.
Typical applications: Built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers in medical facilities, pharmaceuticals, and clean process manufacturing.
Efficiency: Available from 95% to 99.99%.
Media: Microfine glass media formed into individual mini-pleat media packs and assembled into a V-bank filter configuration.
Recommended final pressure drop: Consult factory. Rule of thumb: change filter when the initial pressure drop doubles.
Temperature: Maximum continuous operating temperature of 155º F (68° C).
Ratings: Tested in accordance with IEST Recommended Practice for Testing HEPA Filters.

Spec Sheet

Sizes

Buy

Ultrastar HEPA Diffuser 10 & 12 inch

[ ]

Filtration Group Ultrastar Ducted Terminal Modules (HEPA)
Use minipleated wet laid glass media with efficiency of 99.99% (HEPA) on 0.3μm particle size.
Designed for easy installation and longer service life. The media pack is a 2.0" (51mm) depth with an overall unit height of 7.3". For lower pressure drop, a 2.5" media pack is available.
- 99.99% (HEPA) minimum removal on 0.3μm efficiency
- 2.0" mini-pleat media pack
- Anodized extruded aluminum frame with galvanized hood
- All filters are subject to an efficiency test and a probe scan.

Ultrastar Ducted Terminal Modules (ULPA)
Use mini-pleated wet laid glass media with efficiency of 99.9995% (ULPA) on 0.1 to 0.2μm particle size.
Designed for easy installation and longer service life. The media pack is a 2.5" (63mm) depth with an overall unit height of 7.88".
- 99.9995% (ULPA) minimum removal on 0.1 to 0.2μm efficiency
- 2.5" mini-pleat media pack
- Anodized extruded aluminum frame with galvanized hood
- All filters are subject to an efficiency test and a probe scan.

Spec Sheet

Sizes

Buy

Aerostar Standard Capacity Gasketed Box Style HP HEPA Filter

[ Pleated Panel Air Filters ]

The Aerostar® HEPA filter
is constructed with an 18 gauge galvanized steel frame with a continuous band of media pleated back and forth over corrugated aluminum separators. The HEPA filter removes a broad range of airborne contaminants, including fine dust, smoke, soot, pollen and radioactive particles.

Available in 95% DOP to 99.999% MPPS
- Standard and High Capacity styles available
- Proprietary automated computer test CIPAT (Computer Integrated Particulate Air Test)
- Galvanized steel frame is standard; other materials and headers are optional
- 100% relative humidity

Spec Sheet

Sizes

Buy
